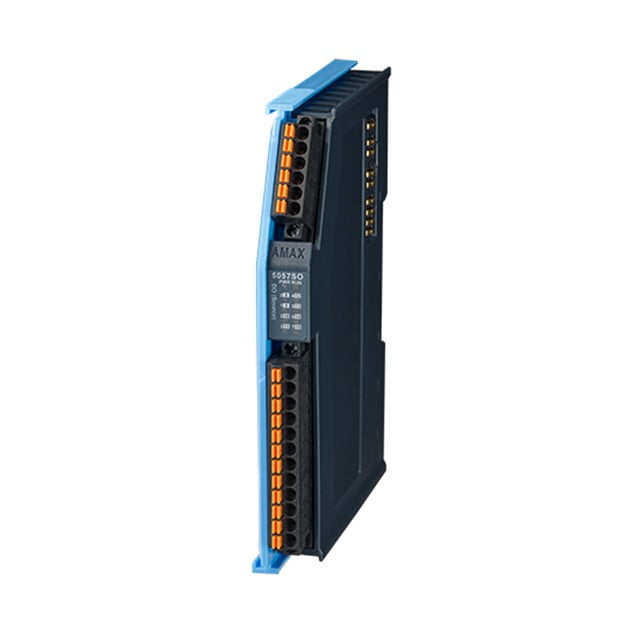

Advantech 16-ch Source Type Digital Output Module (AMAX-5057SO-A2)

1. Channels:16 (Source Type)
2. Voltage Rating:10~30VDC
3. Rated Current Output:0.5A per channel atsignal “1”
4. Leakage Current:10 μA per channel atsignal “0”
5. Output Delay:From logic level 0 to 1:150μs; From logic level 1 to 0: 2ms

DataSheet AMAX-5057SO-A2
